Hamilton-Kolby "Route 62" (BRN-6G2) Amplifier

The Hamilton-Kolby "Route 62" (BRN-6G2) Amplifier is a premium quality, hand-made mid-size combo amplifier built in the early 1960's brown-panel tradition. It's a replica of the 4-knob brown "Princeton" amp, from 1961-1963. Powered by a pair of 6V6GT power tubes, this combo amp delivers a classic sound, owing to its original 6G2 circuit with integrated bias-modulated tremolo.

  • finger-jointed pine cabinet,
  • vintage-style brown Tolex
  • 10" or 12" speaker,
  • 6G2 "Princeton" vacuum tube circuit
  • chassis-mounted pots
  • SwitchcraftTM jacks,
  • eyelet-board construction,
  • hand-soldered connections

In all, a rugged, reliable, and road-ready device.



Power Output: 12 RMS Watts into 8 ohms
Circuit: "6G2" Class AB push-pull, fixed bias, cathodyne PI
Speaker: Jensen C10R 10" (or optional 12")

Construction: steel chassis; Hand-wired, point-to-point vulcanized fiber circuit board with brass eyelets. Pine finger-jointed cabinet. Brown Tolex Covering.

Inputs: 2 Normal 1/4" jacks
Outputs: 8 ohm speaker, internal and external, 1/4" jacks
Controls: Volume, Tone, Speed, Intensity
At rear: Power On/Off, 2A "Slo-Blo" Fuse.

Height: 16" (16-1/2" to top of handle)
Width: 19"
Depth: 10-1/2 " at base; 9-1/2 " at top
Weight: 45 lbs.
Power Consumption: 120VAC, 75W

Tube Complement - Amplifier Section:
2 - 12AX7 Low-Noise Dual Triode
2 - 6V6GT Beam Power Tetrode
1 - 5Y3GT Rectifier


Leatherette amp cover
Customer specified loudspeaker.
Customer specified NOS or boutique tubes

Made in U.S.A.
Specifications subject to change without notice.

H-K BRN-6G2 Amplfier

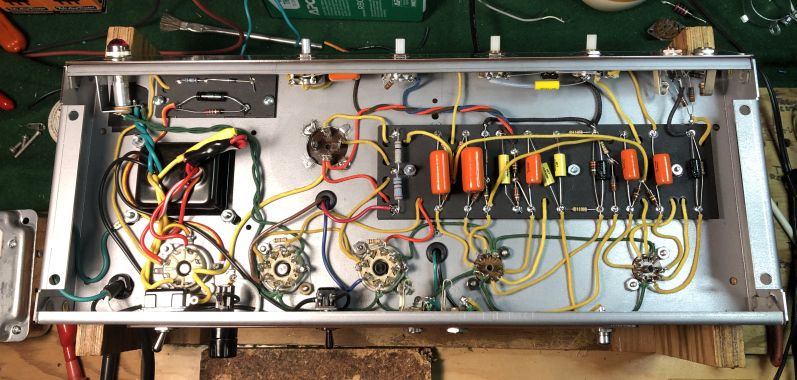

Clean, traditional layout. Hamilton-Kolby BRN-6G2 "Route 62" Amplifier chassis in final assembly

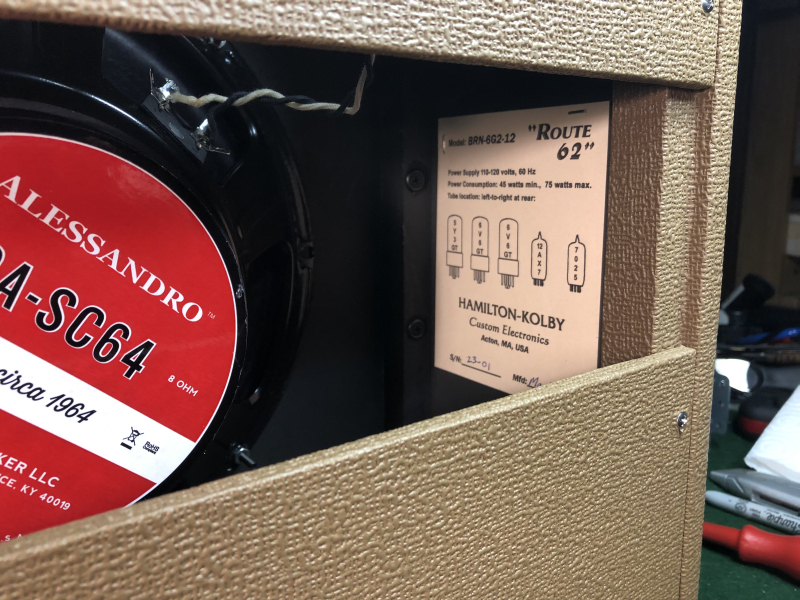

Shown from rear with optional Eminence GA-SC64 12" Speaker
